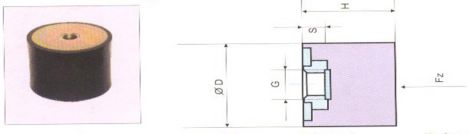

| D ( mm ) | H ( mm ) | G | S ( mm ) |
|---|
| 15 | 8 | M-4 | 4 | | 15 | 15 | M-4 | 4 | | 20 | 10 | M-6 | 6 | | 20 | 13,5 | M-6 | 6,5 | | 20 | 15 | M-6 | 6 | | 20 | 20 | M-6 | 6 | | 20 | 25 | M-6 | 6 | | 25 | 15 | M-6 | 6 | | 25 | 17 | M-4 | 6 | | 25 | 20 | M-6 | 6 | | 25 | 22 | M-8 | 6 | | 25 | 25 | M-6 | 6 | | 25 | 30 | M-6 | 6 | | 30 | 15 | M-8 | 6 | | 30 | 17 | M-8 | 10 | | 30 | 17 | M-10 | 8 | | 30 | 20 | M-8 | 6 | | 30 | 20 | M-8 | 10 | | 30 | 20 | M-10 | 6 | | 30 | 25 | M-8 | 10 | | 30 | 30 | M-8 | 10 | | 40 | 20 | M-8 | 8 | | 40 | 28 | M-10 | 8 | | 40 | 30 | M-8 | 6 | | 40 | 40 | M-8 | 15 | | 50 | 15 | M-10 | 10 | | 50 | 20 | M-10 | 10 | | 50 | 25 | M-10 | 10 | | 50 | 30 | M-10 | 10 | | 50 | 40 | M-8 | 15 | | 50 | 40 | M-10 | 8 | | 50 | 45 | M-10 | 15 | | 50 | 50 | M-10 | 15 | | 60 | 36 | M-10 | 8 | | 60 | 40 | M-12 | 10 | | 60 | 45 | M-10 | 8 | | 70 | 40 | M-12 | 9 | | 70 | 50 | M-10 | 9 | | 75 | 25 | M-12 | 12 | | 75 | 40 | M-12 | 12 | | 75 | 50 | M-12 | 12 | | 75 | 55 | M-12 | 12 | | 80 | 40 | M-14 | 12 | | 100 | 40 | M-16 | 16 | | 100 | 50 | M-16 | 16 | | 100 | 55 | M-16 | 16 | | 100 | 60 | M-16 | 16 | | 100 | 75 | M-116 | 16 | | 150 | 50 | M-20 | 18 | | 150 | 55 | M-20 | 18 | | 150 | 60 | M-20 | 18 | | 150 | 75 | M-20 | 18 | | 200 | 100 | M-20 | 18 |
| Malzeme | : | Tabii Kauçuk | | Metal | : | Çinko Kaplama | | Sertlik | : | 50 ± 5 Sh. A | | Tolerans | : | DIN 7715 M3 | | Sıcaklık Dayanımı | : | -20ºC / + 80ºC | | İstenen Diğer Sertlikler | : | 35 - 70 ± 5 Sh. A |
|
